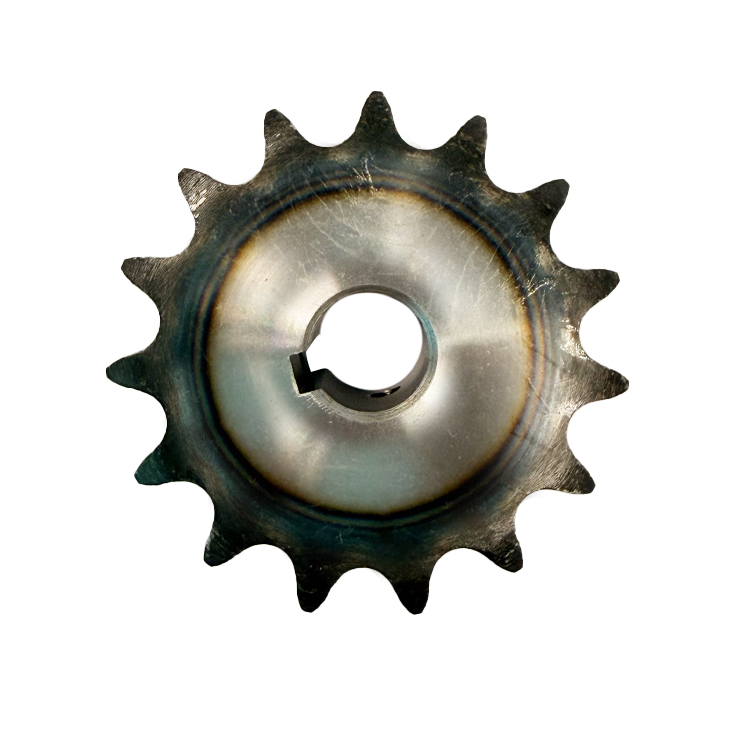

规格描述

• 型号表示

  TKRS	40	-	1	B	21T	Q
  ｜	｜		｜	｜	｜	｜
  产品名	ANSI链号		链条列数	链轮形式	齿数	齿顶淬火硬化
  椿凯链轮				B:单轮毂型

• 尺寸参数

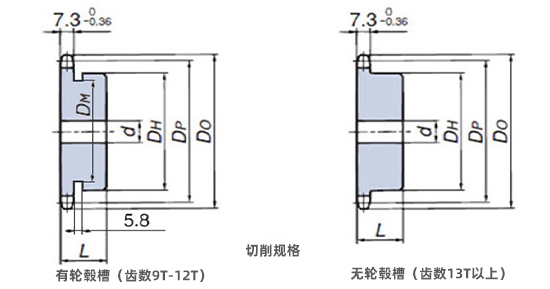

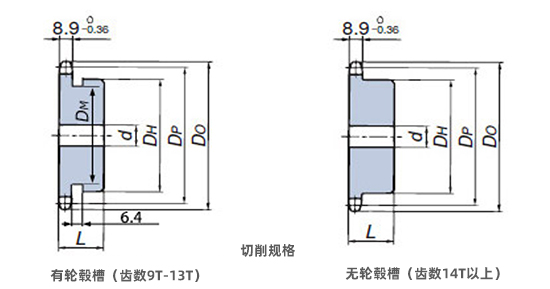

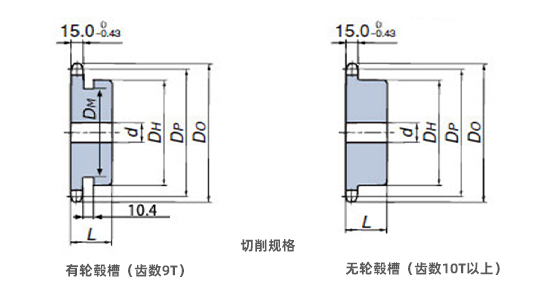

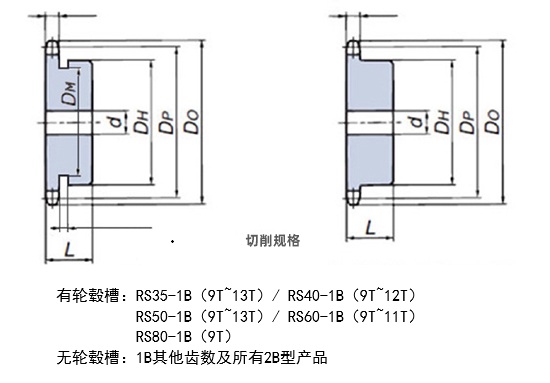

  TKRS链轮·B型

  长度单位：mm

  型号	齿数	工艺孔径d(mm)	孔加工范围d(mm)	节距圆直径DP(mm)	外径DO(mm)	轮毂外径DH(mm)	轮毂长L(mm)	轮毂槽外径DM(mm)	大概质量（kg)
  TKRS40-1B10TQ	10	9.5	10-16	41.1	47	32	22	25	0.13
  TKRS40-1B11TQ	11	9.5	10-20	45.08	51	37	22	30	0.17
  TKRS40-1B12TQ	12	9.5	10-22	49.07	55	40	22	32	0.21
  TKRS40-1B13TQ	13	9.5	10-20	53.07	59	37	22	---	0.22
  TKRS40-1B14TQ	14	9.5	10-24	57.07	63	42	22	---	0.28
  TKRS40-1B15TQ	15	9.5	10-29	61.08	67	46	22	---	0.33
  TKRS40-1B16TQ	16	12.7	13-30	65.1	71	50	22	---	0.37
  TKRS40-1B17TQ	17	12.7	13-21	69.12	76	54	22	---	0.44
  TKRS40-1B18TQ	18	12.7	13-35	73.14	80	57	22	---	0.49
  TKRS40-1B19TQ	19	12.7	13-40	77.16	83	62	22	---	0.57
  TKRS40-1B20TQ	20	12.7	13-46	81.18	88	67	25	---	0.73
  TKRS40-1B22TQ	22	12.7	13-50	89.24	96	75	25	---	0.91
  TKRS40-1B25TQ	25	12.7	13-42	101.33	108	63	25	---	0.83
  TKRS40-1B28TQ	28	12.7	13-42	113.43	120	63	25	---	0.95
  TKRS40-1B30TQ	30	12.7	13-42	121.5	128	63	25	---	1
  TKRS50-1B10TQ	10	9.5	10-22	51.37	58	40	25	32	0.24
  TKRS50-1B11TQ	11	12.7	13-25	56.35	64	46	25	37	0.3
  TKRS50-1B12TQ	12	12.7	13-32	61.34	69	51	25	42	0.37
  TKRS50-1B13TQ	13	12.7	13-32	66.33	74	51	25	47	0.42
  TKRS50-1B14TQ	14	12.7	13-32	71.34	79	52	25	---	0.49
  TKRS50-1B15TQ	15	12.7	13-35	76.35	84	57	25	---	0.58
  TKRS50-1B16TQ	16	12.7	13-40	81.37	89	62	25	---	0.68
  TKRS50-1B17TQ	17	12.7	13-45	86.39	94	67	25	---	0.78
  TKRS50-1B18TQ	18	12.7	13-47	91.42	100	72	28	---	0.99
  TKRS50-1B19TQ	19	12.7	13-48	96.45	105	73	28	---	1.1
  TKRS50-1B20TQ	20	12.7	13-48	101.48	110	73	28	---	1.1
  TKRS50-1B22TQ	22	15.9	17-48	111.55	120	73	28	---	1.2
  TKRS50-1B25TQ	25	15.9	17-48	126.66	135	73	28	---	1.4
  TKRS50-1B28TQ	28	18	17-48	141.79	150	73	28	---	1.6
  TKRS50-1B30TQ	30	18	17-48	151.87	161	73	28	---	1.8
  TKRS60-1B10TQ	10	12.7	13-30	61.65	70	49	32	37	0.45
  TKRS60-1B11TQ	11	12.7	13-32	67.62	76	51	32	45	0.55
  TKRS60-1B12TQ	12	12.7	13-32	73.6	83	51	32	---	0.63
  TKRS60-1B13TQ	13	15.9	17-35	79.6	89	57	32	---	0.76
  TKRS60-1B14TQ	14	15.9	17-39	85.61	95	62	32	---	0.9
  TKRS60-1B15TQ	15	15.9	17-45	91.63	101	68	32	---	1.1
  TKRS60-1B16TQ	16	15.9	17-47	97.65	107	73	32	---	1.2
  TKRS60-1B17TQ	17	15.9	17-47	103.67	113	73	32	---	1.3
  TKRS60-1B18TQ	18	15.9	17-55	109.7	119	83	40	---	1.9
  TKRS60-1B19TQ	19	15.9	17-55	115.74	126	83	40	---	2
  TKRS60-1B20TQ	20	15.9	17-55	121.78	132	83	40	---	2.1
  TKRS60-1B22TQ	22	15.9	17-55	133.86	144	83	40	---	2.3
  TKRS60-1B25TQ	25	18	19-55	151.99	162	83	40	---	2.7
  TKRS60-1B28TQ	28	18	19-55	170.14	180	83	40	---	3.1
  TKRS60-1B30TQ	30	18	19-55	182.25	193	83	40	---	3.4
  TKRS80-1B10TQ	10	15.9	17-32	82.2	93	52	40	---	0.88
  TKRS80-1B11TQ	11	15.9	17-38	90.16	102	60	40	---	1.1
  TKRS80-1B12TQ	12	19	20-46	98.14	110	67	40	---	1.4
  TKRS80-1B13TQ	13	19	20-50	106.14	118	77	40	---	1.7
  TKRS80-1B14TQ	14	19	20-50	114.15	127	77	40	---	1.9
  TKRS80-1B15TQ	15	19	20-63	122.17	135	93	40	---	2.5
  TKRS80-1B16TQ	16	19	20-63	130.2	143	93	40	---	2.7
  TKRS80-1B17TQ	17	19	20-63	138.23	151	93	40	---	2.8
  TKRS80-1B18TQ	18	19	20-63	146.27	159	93	40	---	3
  TKRS80-1B19TQ	19	23	24-63	154.32	167	93	40	---	3.2
  TKRS80-1B20TQ	20	23	24-63	162.37	176	93	40	---	3.4

追加工选型说明

• TKRS孔槽追加工体系

  追加工型号规则：标准品型号-链轮加工代号
  追加工形式	不加工部位	型号示例
  1：轴孔 (使用胀紧套联接）	键槽，固定螺孔	TKRS60-1B20TQ-H19WD0
  2：轴孔+键槽	固定螺孔	TKRS60-1B20TQ-H19GD0
  3：轴孔+固定螺孔	键槽	TKRS60-1B20TQ-H19WD1
  4：轴孔+键槽+固定螺孔	-	TKRS60-1B20TQ-H19GD1

• 链轮代号详细

  轴孔径公差	轴孔径	键槽公差	固定螺孔的位置
  H	19	G	D1
  F:F7 G:G7 H:H7 J:JS7 P:P7 M:M7 N:N7 K:K7 R:R7 *默认H	孔径间隔为1mm	J:新JIS Js9 P:新JIS P9 E:旧JIS E9 G:GB1095 W:无键槽 *默认G	*默认D1
  *体系外孔槽（欧美标准）要求，可咨询定制

图纸下载

40-1B系列	50-1B系列	60-1B系列	80-1B系列
TKRS40-1B10TQ图纸 TKRS40-1B11TQ图纸 TKRS40-1B12TQ图纸 TKRS40-1B13TQ图纸 TKRS40-1B14TQ图纸 TKRS40-1B15TQ图纸 TKRS40-1B16TQ图纸 TKRS40-1B17TQ图纸 TKRS40-1B18TQ图纸 TKRS40-1B19TQ图纸 TKRS40-1B20TQ图纸 TKRS40-1B22TQ图纸 TKRS40-1B25TQ图纸 TKRS40-1B28TQ图纸 TKRS40-1B30TQ图纸	TKRS50-1B10TQ图纸 TKRS50-1B11TQ图纸 TKRS50-1B12TQ图纸 TKRS50-1B13TQ图纸 TKRS50-1B14TQ图纸 TKRS50-1B15TQ图纸 TKRS50-1B16TQ图纸 TKRS50-1B17TQ图纸 TKRS50-1B18TQ图纸 TKRS50-1B19TQ图纸 TKRS50-1B20TQ图纸 TKRS50-1B22TQ图纸 TKRS50-1B25TQ图纸 TKRS50-1B28TQ图纸 TKRS50-1B30TQ图纸	TKRS60-1B10TQ图纸 TKRS60-1B11TQ图纸 TKRS60-1B12TQ图纸 TKRS60-1B13TQ图纸 TKRS60-1B14TQ图纸 TKRS60-1B15TQ图纸 TKRS60-1B16TQ图纸 TKRS60-1B17TQ图纸 TKRS60-1B18TQ图纸 TKRS60-1B19TQ图纸 TKRS60-1B20TQ图纸 TKRS60-1B22TQ图纸 TKRS60-1B25TQ图纸 TKRS60-1B28TQ图纸 TKRS60-1B30TQ图纸	TKRS80-1B10TQ图纸 TKRS80-1B11TQ图纸 TKRS80-1B12TQ图纸 TKRS80-1B13TQ图纸 TKRS80-1B14TQ图纸 TKRS80-1B15TQ图纸 TKRS80-1B16TQ图纸 TKRS80-1B17TQ图纸 TKRS80-1B18TQ图纸 TKRS80-1B19TQ图纸 TKRS80-1B20TQ图纸

使用方法

     椿凯链轮使用说明书

    链轮的安装配置

• 两个链轮的中心点连点成线，以此线为准越接近水平则滚子链的传动就越为理想
• 垂直或者与此类似的传动时，为了使链轮在链条有略微伸长时也可以被顺利取下，请使用惰轮或者张紧器
• 有倾斜时，需确保倾斜角度不超过60°

    链轮的点检

• 可以通过查看滚子和轮齿面的接触情况来检查滚子链和链轮的啮合是否正常

     啮合正常时其接触面如图A所示

• 当出现偏移时如B所示时，滚子接触到轮齿的侧面，轮齿侧面被磨削，

     则说明链轮安装不正确使滚子链发生了扭转。需进行再次点检和调整

• 接触位置在轮齿底部（齿根）略微靠上时即可视作正常。如图所示，A的位置有较强的接触印记
  但是，如果初期张力作用于链条，且松弛侧也有张力的场合，会轻微接触齿底。

产品概述

• 链轮通常与传动链搭配用于高效，长距离，多轴的动力传输或物品输送

• 通过两个链轮不同齿数的搭配，能够得到较大的减速比（一般可达1:7)
